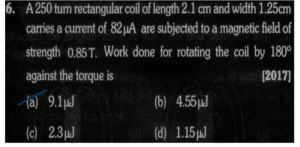

A 250 turn rectangular coil of length 2.1 cm and width 1.25cm carries a current of 82mu*A are subjected to a magnetic field of strength 0.85T. Work done for rotating the coil by 180° against the torque is

Question:

A 250 turn rectangular coil of length 2.1 cm and width 1.25cm carries a current of 82muA are subjected to a magnetic field of strength 0.85T. Work done for rotating the coil by 180° against the torque is

Options :

(a)9.1uJ
(b)4.55uJ
(c)2.3uJ
(d)1.15uJ

Answer :

Ans : – (a)9.1uJ

Answer Steps :

Step1 :-

Video Tutorial

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

A 1 µF condenser is charged to 50 V. The charging battery is then disconnected and a 10 mH coil is connected across the capacitor so that LC oscillations occur. What is the maximum current in the coil ? Assume that the circuit contains no resistance. The capacity of a pure capacitor is 1 F. In d.c. circuits, its effective resistance will be

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by
