A coil in the shape of an equilateral triangle of side 0.02 m is suspended from its vertex such that it is hanging in a vertical plane between the pole pieces of permanent magnet producing a uniform field of 5 * 10 ^ - 2 * T If a current of 0.1 A is passed through the coil, what is the couple acting - VgyanHub

Question:

A coil in the shape of an equilateral triangle of side 0.02 m is suspended from its vertex such that it is hanging in a vertical plane between the pole pieces of permanent magnet producing a uniform field of 5*10 ^{– 2} T If a current of 0.1 A is passed through the coil, what is the couple acting

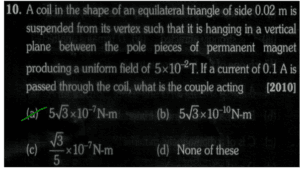

Screenshot 2025-01-05 142535

Options :

(a) 5√3 * 10^-7 N-m
(b) 5√3 * 10^-10 N-m
(c)√3/5*10^-7 N-m
(d) None of these

Answer :

Ans :- (a) 5√3 * 10^-7 N-m

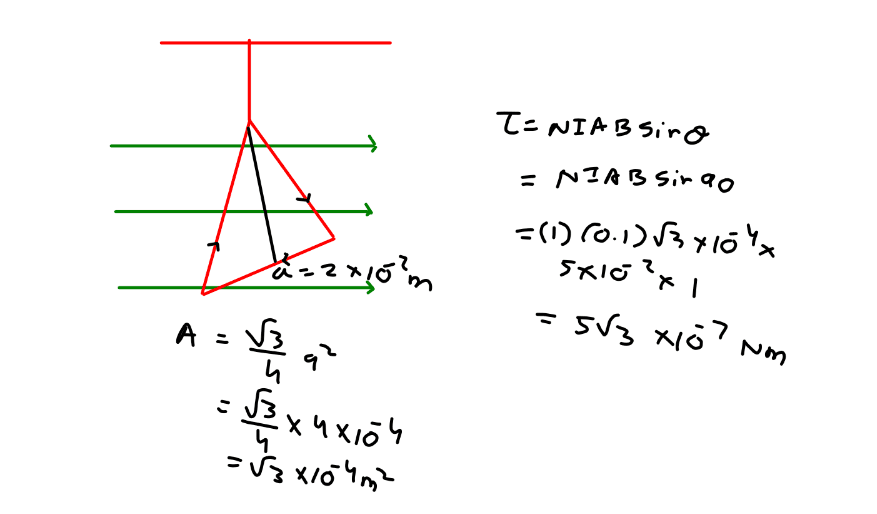

Answer Steps :

Step 1:-

Step 2: –

Video Tutorial

Related Questions

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

A 1 µF condenser is charged to 50 V. The charging battery is then disconnected and a 10 mH coil is connected across the capacitor so that LC oscillations occur. What is the maximum current in the coil ? Assume that the circuit contains no resistance. The capacity of a pure capacitor is 1 F. In d.c. circuits, its effective resistance will be

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by
