A plane progressive wave is represented by the equation y=0.1sin(200pit−20πx) where y is displacement in m , t in second and x is distance from a fixed origin in meter . The frequency, wavelength and speed of the wave respectively are

Question:

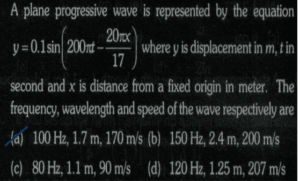

A plane progressive wave is represented by the equation y=0.1sin(200πt−20πx/17) where y is displacement in m , t in second and x is distance from a fixed origin in meter . The frequency, wavelength and speed of the wave respectively are

Options :

a)100Hz,1.7m,170m/s
b)150Hz,2.4m,200m/s
c)80Hz,1.1m,90m/s
d)120Hz,1.25m,207m/s

Answer :

a)100Hz,1.7m,170m/s

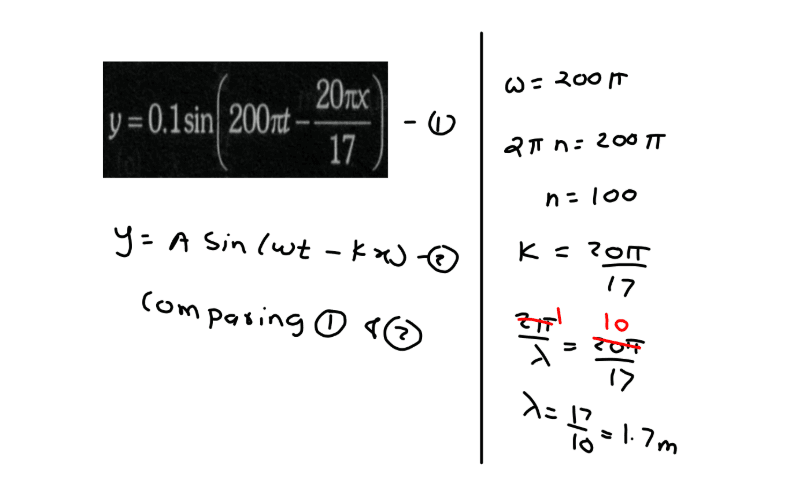

Answer Steps :

Step:-1

Step:-2

Video Tutorial

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

A 1 µF condenser is charged to 50 V. The charging battery is then disconnected and a 10 mH coil is connected across the capacitor so that LC oscillations occur. What is the maximum current in the coil ? Assume that the circuit contains no resistance. The capacity of a pure capacitor is 1 F. In d.c. circuits, its effective resistance will be

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by
