Question:

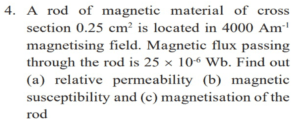

A rod of magnetic material of cross section 0.25 cm² is located in 4000 Am^-1 magnetising field. Magnetic flux passing through the rod is 25 × 10^-6 Wb. Find out (a) relative permeability (b) magnetic susceptibility and (c) magnetisation of the rod.

Capture

Options :

Answer Steps :

step 1:

step 2:

Video Tutorial
