A sinusoidal voltage of peak value 283 V and frequency 50 Hz is applied to a series LCR circuit in which R=30Ω, L = 25.48 mH and C = 796 μf. Find The impedance of the circuit i) ii) The phase difference between the voltage across source and the currents iii) The power factor iv) The power dissipated in the surface - VgyanHub

Question:

A sinusoidal voltage of peak value 283 V and frequency 50 Hz is applied to a series LCR circuit in which R=30Ω, L = 25.48 mH and C = 796 μf. Find The impedance of the circuit i) ii) The phase difference between the voltage across source and the currents iii) The power factor iv) The power dissipated in the surface

Options :

Answer Steps :

step 1

step 2

step 3

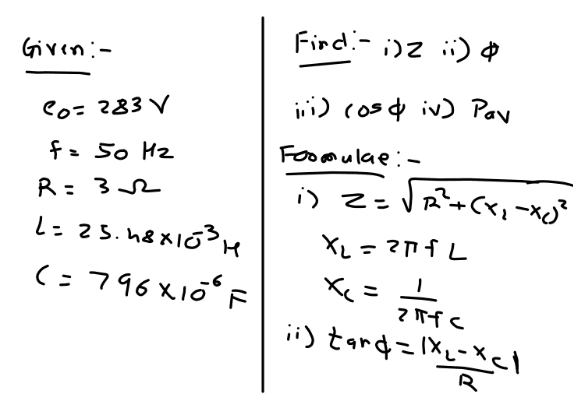

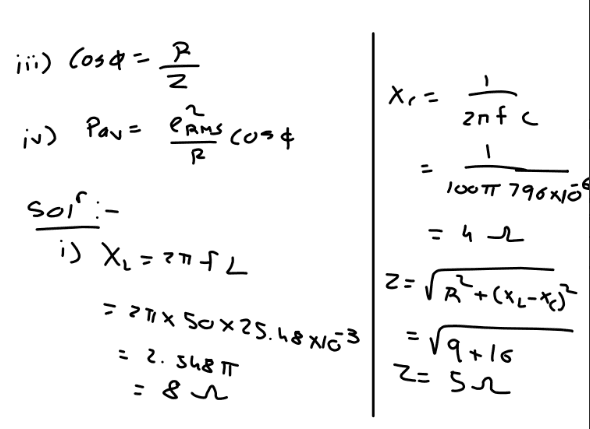

Video Tutorial

Related Questions

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

A 1 µF condenser is charged to 50 V. The charging battery is then disconnected and a 10 mH coil is connected across the capacitor so that LC oscillations occur. What is the maximum current in the coil ? Assume that the circuit contains no resistance. The capacity of a pure capacitor is 1 F. In d.c. circuits, its effective resistance will be

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by
