Question:

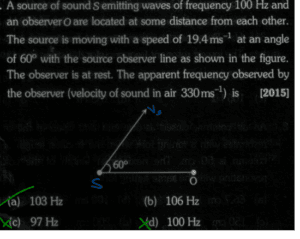

A source of sound S emitting waves of frequency 100 Hz and an observer O are located at some distance from each other. The source is moving with a speed of 19.4-1 ms at an angle of 60° with the source observer line as shown in the figure. The observer is at rest. The apparent frequency observed by the observer (velocity of sound in air 330 ms-1) is

31a

Options :

a)103Hz
b)106Hz
c)97Hz
d)100Hz

Answer :

a)103Hz

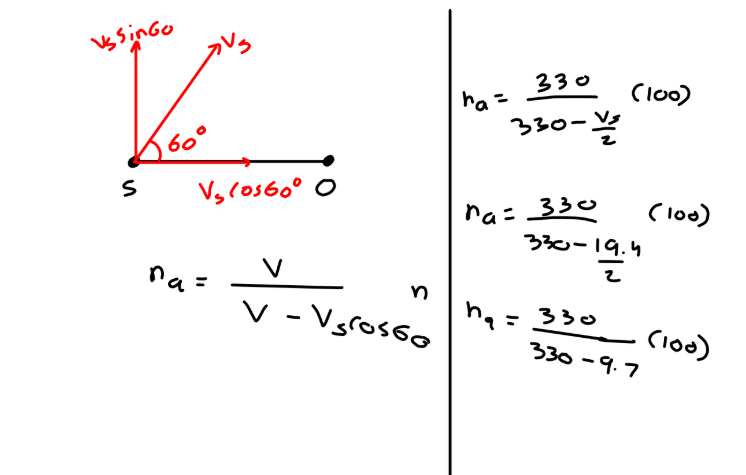

Answer Steps :

Step:-1

Step:-2

Video Tutorial
