Question:

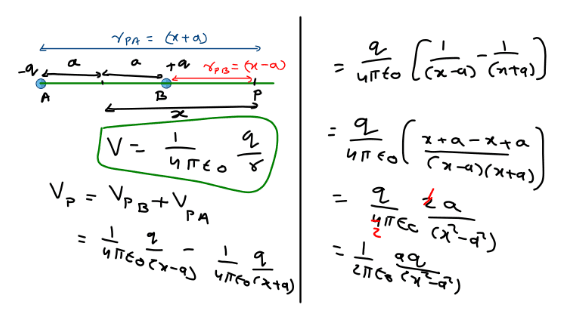

An electric dipole is as shown in figure. The electric potential at point P due to the dipole is

Options :

(a) aq/2πε0(x^2+a^2)
(b) 2aq/πε0(x^2+a^2)
(c) 2aq/πε0(x^2-a^2)
(d) aq/2πε0(x^2-a^2)

Answer :

(d) aq/2πε₀(x²-a²)

Answer Steps :

step 1

step 2

step 3

step 4

Video Tutorial
