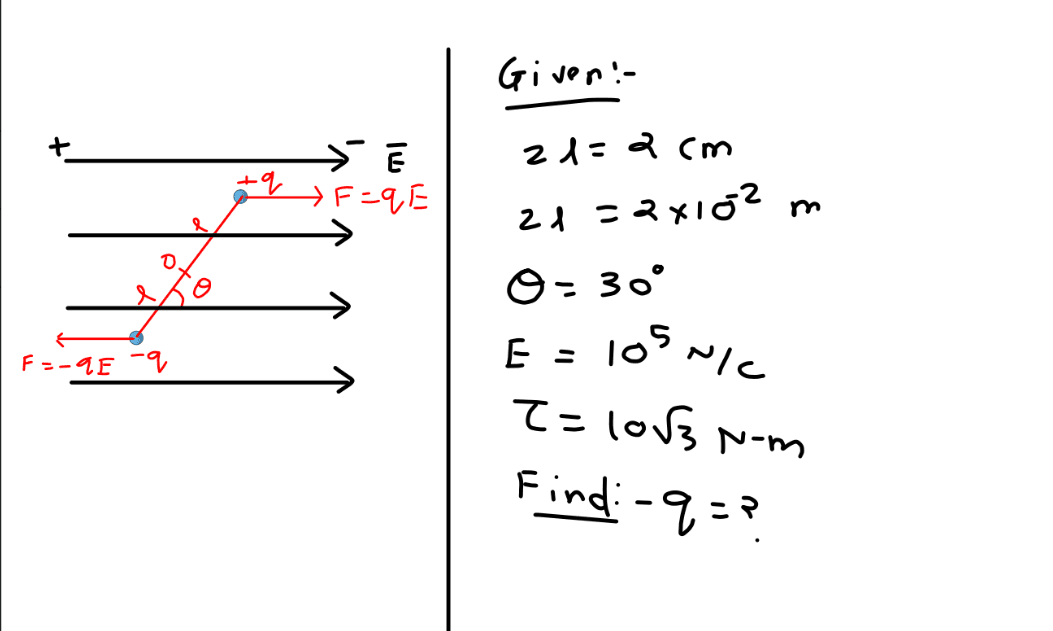

An electric dipole of length 2.0 cm is placed with its axis making an angle of 30° with a uniform electric field of 10^5 N/C. as shown in figure. If it experiences a torque of 10√3 Nm, calculate the magnitude of charge on the dipole.

Question:

An electric dipole of length 2.0 cm is placed with its axis making an angle of 30° with a uniform electric field of 10⁵N/C. as shown in figure. If it experiences a torque of 10√3 Nm, calculate the magnitude of charge on the dipole.

Options :

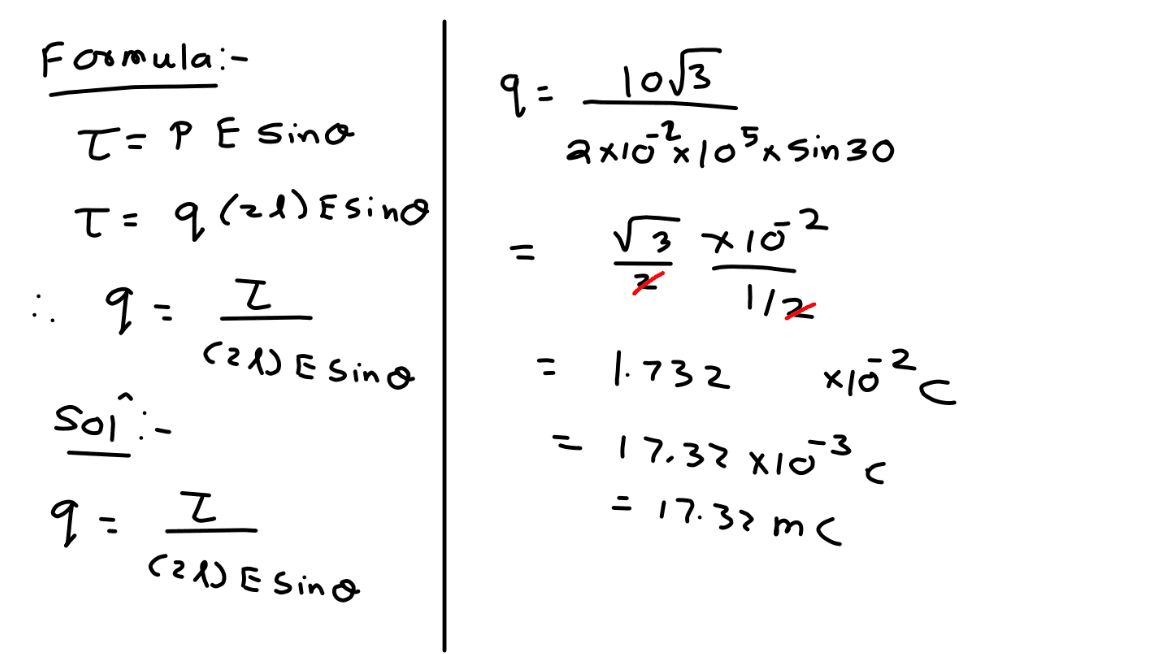

Answer Steps :

step 1

step 2

Video Tutorial

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

A 1 µF condenser is charged to 50 V. The charging battery is then disconnected and a 10 mH coil is connected across the capacitor so that LC oscillations occur. What is the maximum current in the coil ? Assume that the circuit contains no resistance. The capacity of a pure capacitor is 1 F. In d.c. circuits, its effective resistance will be

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by
