Example 12.2: A long solenoids, as shown in the figure has 200 turns/cm and carries a current i of 1.4 A. The diameter D of the solenoid is 3 cm. A coil C, having 100 turns and a diameter d of 2 cm is kept at the centre of the solenoid. The current in the solenoid is decreased steadily to zero in 20 ms. Calculate the magnitude of emf induced in the coil C when the current in the solenoid is changing. - VgyanHub

Question:

Example 12.2: A long solenoids, as shown in the figure has 200 turns/cm and carries a current i of 1.4 A. The diameter D of the solenoid is 3 cm. A coil C, having 100 turns and a diameter d of 2 cm is kept at the centre of the solenoid. The current in the solenoid is decreased steadily to zero in 20 ms. Calculate the magnitude of emf induced in the coil C when the current in the solenoid is changing.

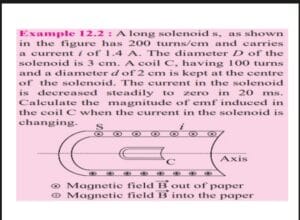

Screenshot_2024-12-08-23-31-22-87_e2d5b3f32b79de1d45acd1fad96fbb0f

Options :

Answer Steps :

Step 1:

Step 2:

Step 3:

Video Tutorial
