Question:

Example 12.5: Derive an expression for the self-inductance of a toroid of circular cross- section of radius r and major radius R. Calculate the self inductance (L) of toroid for major radius (R) = 15 cm, cross-section of toroid having radius (r) = 2 cm and the number of turns (N) = 1200

Options :

Answer Steps :

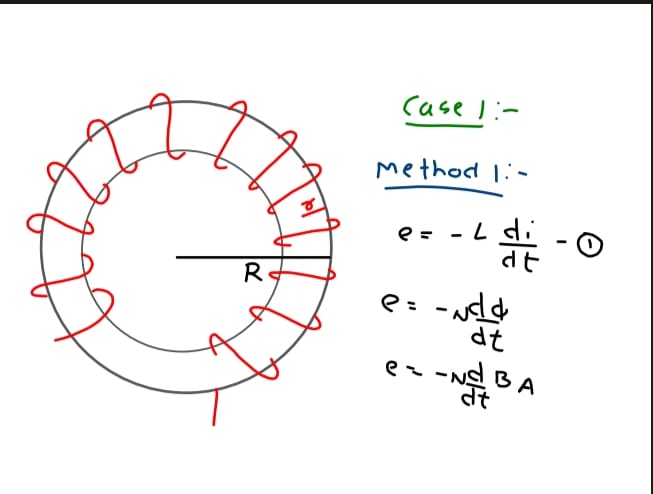

Step 1:

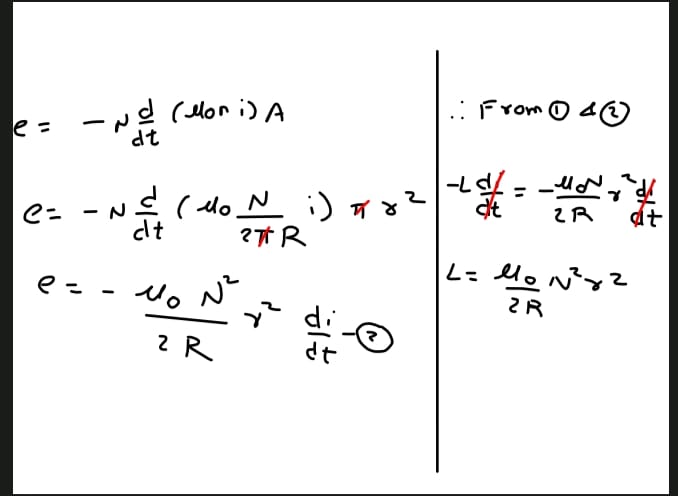

Step 2:

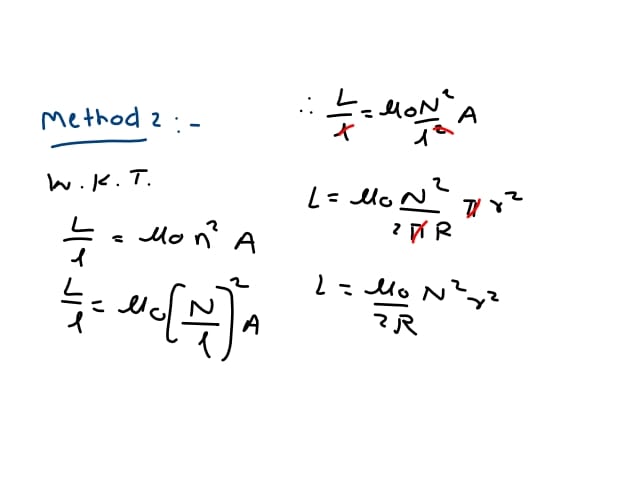

Step 3:

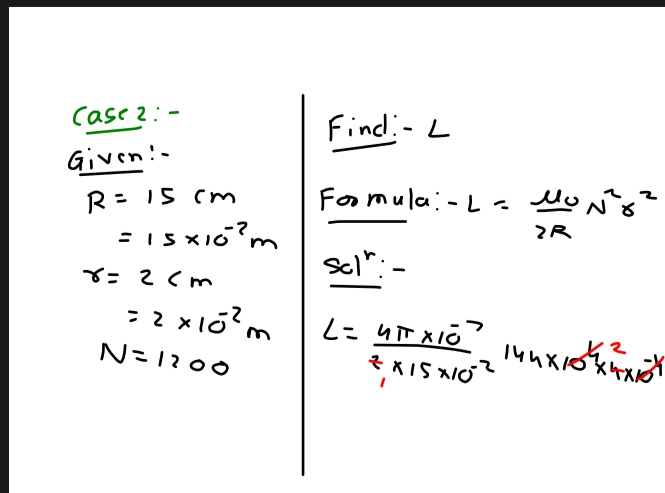

Step 4:

Step 5:

Video Tutorial
