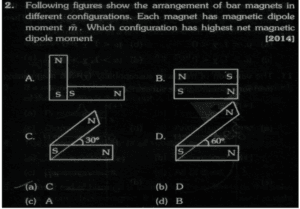

Following figures show the arrangement of bar magnets in different configurations. Each magnet has magnetic dipole moment m. Which configuration has highest net magnetic dipole moment[2014]

Question:

Options :

(a) C
(b) D
(c) A
(d) B

Answer :

Ans : -(a) C

Answer Steps :

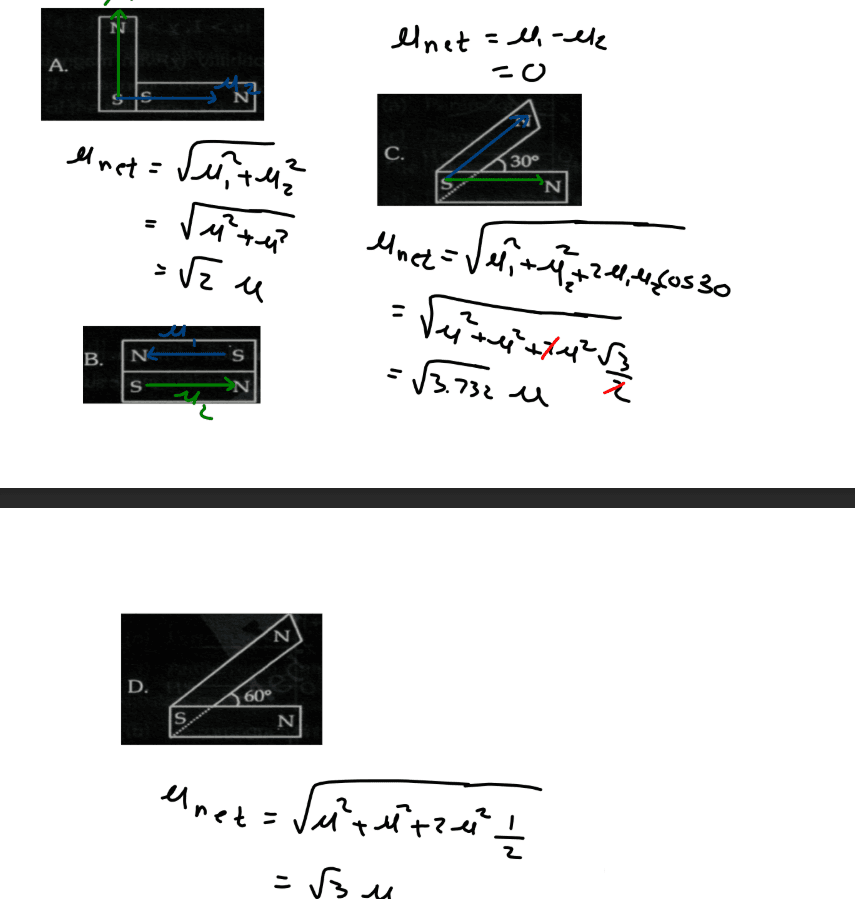

Step 1 :-

Video Tutorial
