Question:

Four indentical condensers are connected in parallel and then in series. The ratio of equivalent capacitance in series to that in parallel combination is

Options :

(a) 4:1
(b) 1:4
(c) 1:16
(d) 16:1

Answer :

(c) 1:16

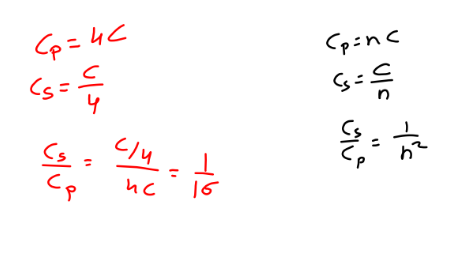

Answer Steps :

step 1

Video Tutorial
