Question:

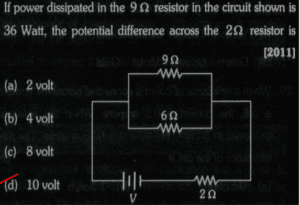

If power dissipated in the 9Ω resistor in the circuit shown is 36 Watt, the potential difference across the 2Ω resistor is [2011]

Options :

a)2volt
b)4volt
c)8volt
d)10volt

Answer :

d)10volt

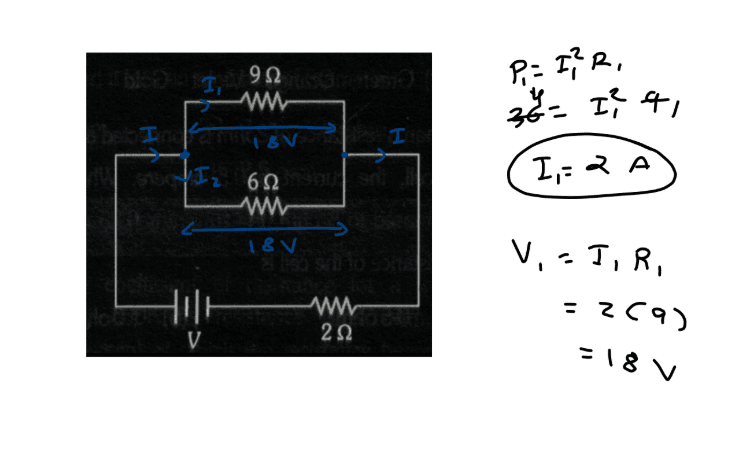

Answer Steps :

Step:-1

Step:-2

Video Tutorial
