In a Wheatstone's bridge, three resistance P, Q and R are connected in the three arms and the fourth arm is formed by two resistances S₁ and S2 connected in parallel. The condition for the bridge to be balanced will be [2006]

Question:

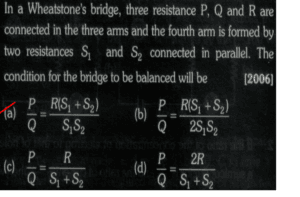

In a Wheatstone’s bridge, three resistance P, Q and R are connected in the three arms and the fourth arm is formed by two resistances S₁ and S2 connected in parallel. The condition for the bridge to be balanced will be [2006]

Options :

a)P/Q= R(S1+S2)/S1S2
b)P/Q= R(S1+S2)/2S1S2
c)P/Q= R/S1+S2
d)P/Q= 2R/S1+S2

Answer :

a)P/Q= R(S1+S2)/S1S2

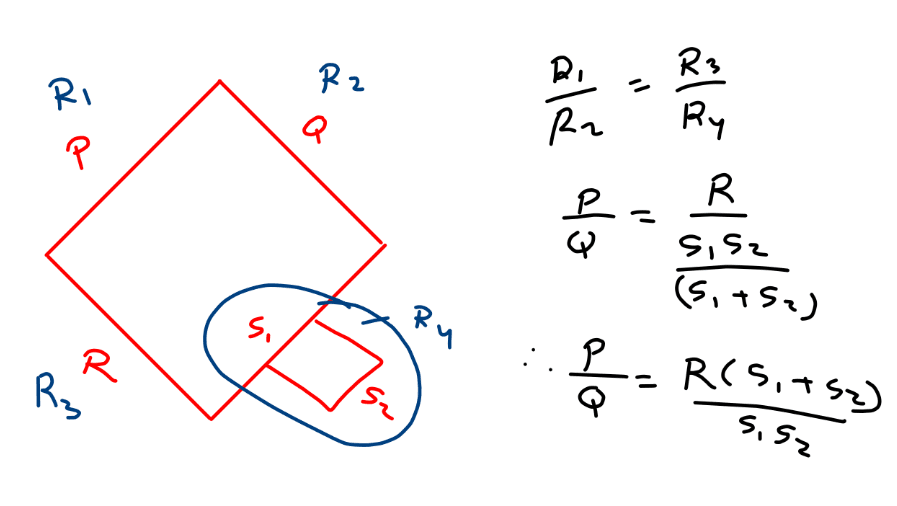

Answer Steps :

Step:-1
