Question:

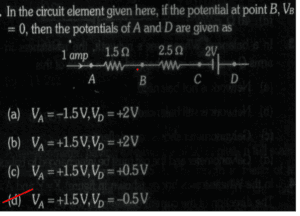

In the circuit element given here, if the potential at point B, VB = 0, then the potentials of A and D are given as

56 que

Options :

a) VA=-1.5V,VD = +2V
b)VA=+1.5V,VD = +2V
c) VA=+1.5V,VD = +0.5V
d) VA=+1.5V,VD = -0.5V

Answer :

d) VA=+1.5V,VD = -0.5V

Answer Steps :

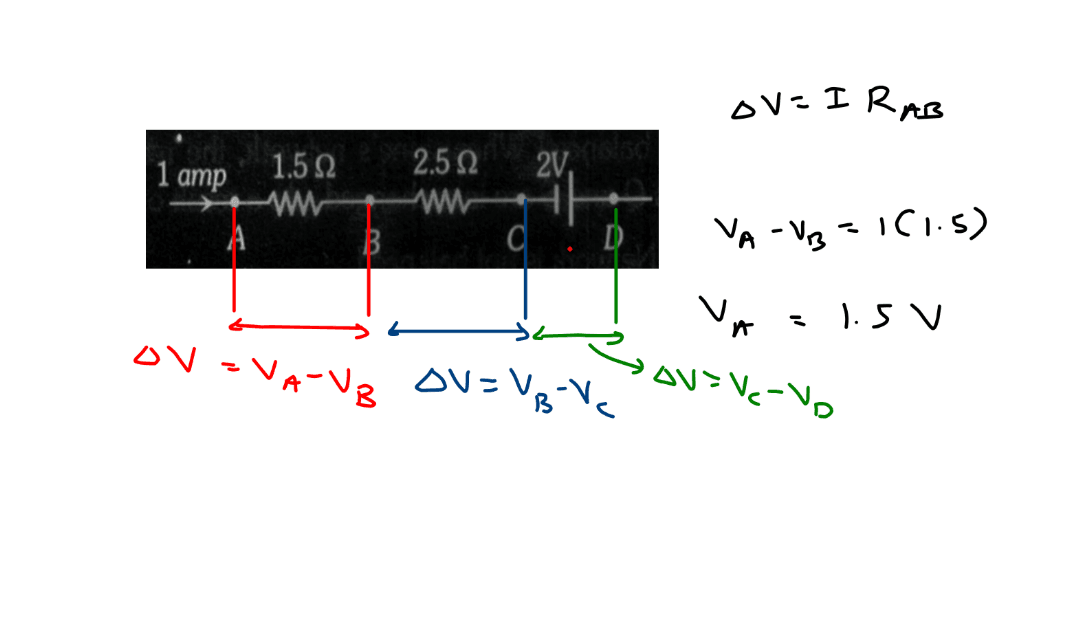

Step:-1

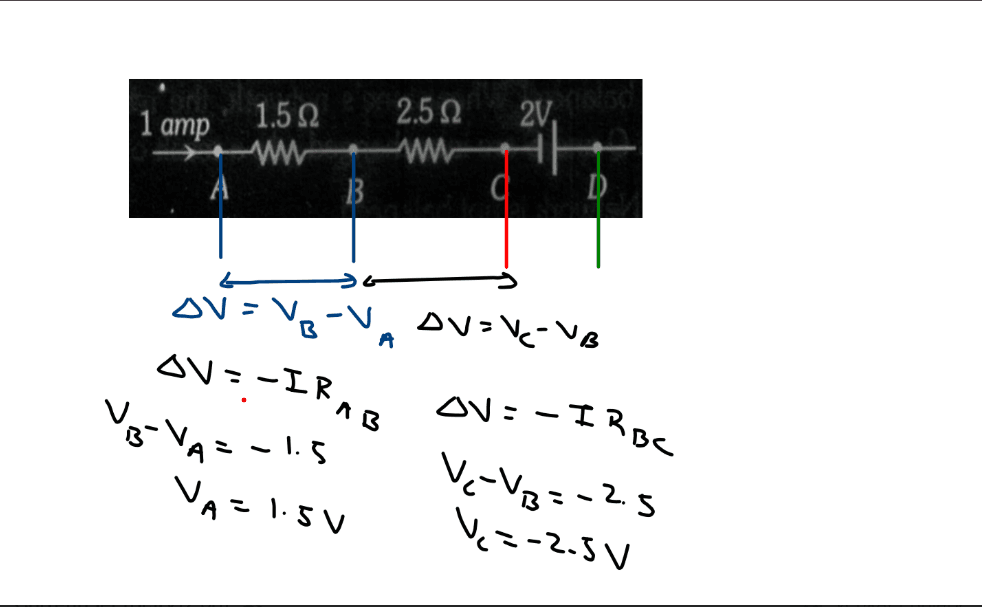

Step:-2

Step:-3
