Question:

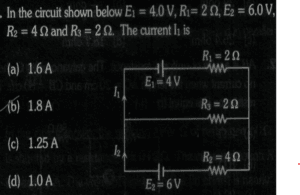

In the circuit shown below E1 = 4.0 V, R₁= 2 Ω, E2 = 6.0 V, R2 = 4 Ω and R3 = 2 Ω. The current I1 is

55 que

Options :

a)1.6A
b)1.8A
c)1.25A
d)1.0A

Answer :

b)1.8A

Answer Steps :

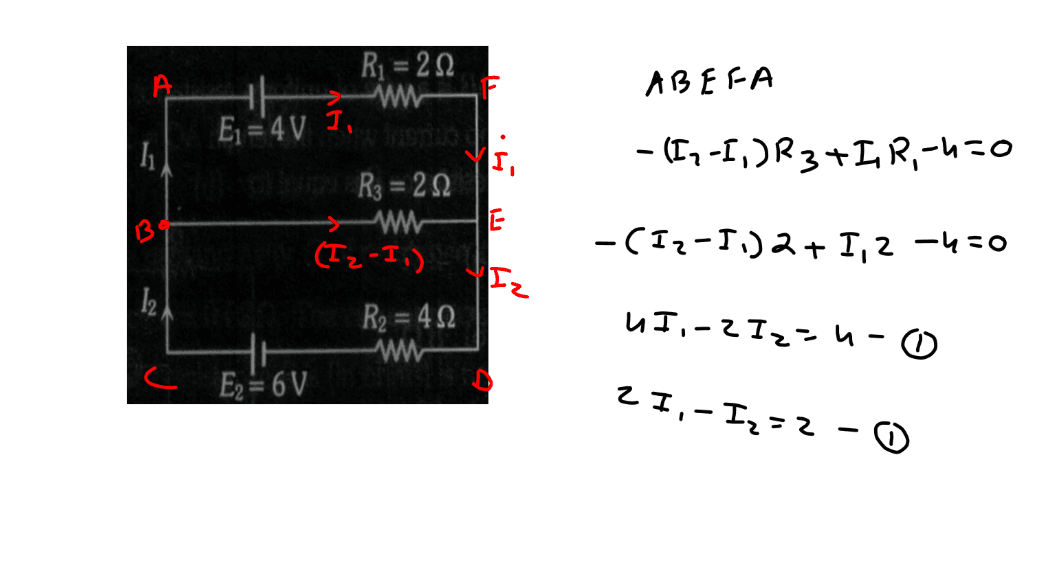

Step:-1

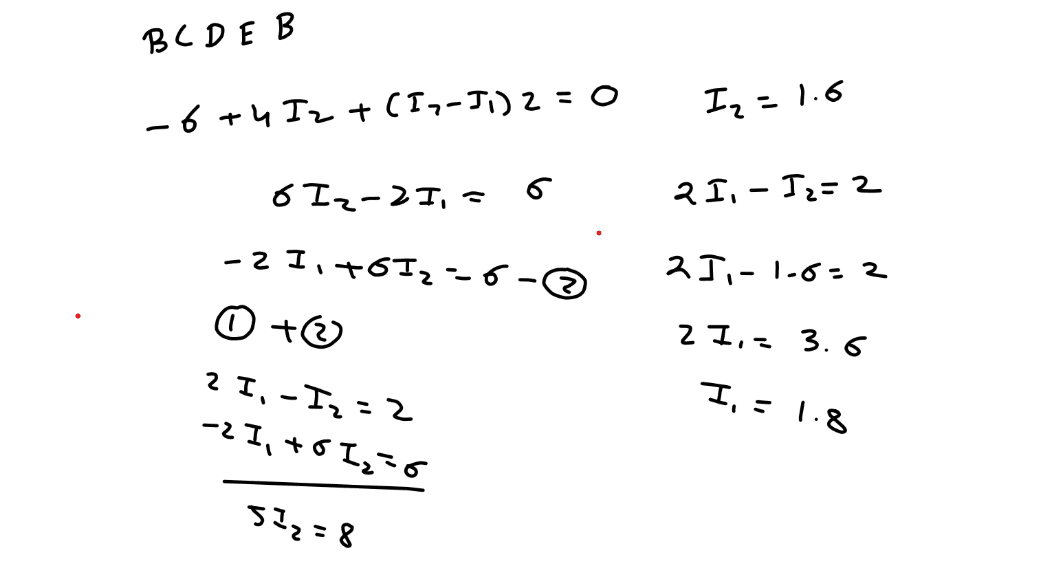

Step:-2

Video Tutorial
