Question:

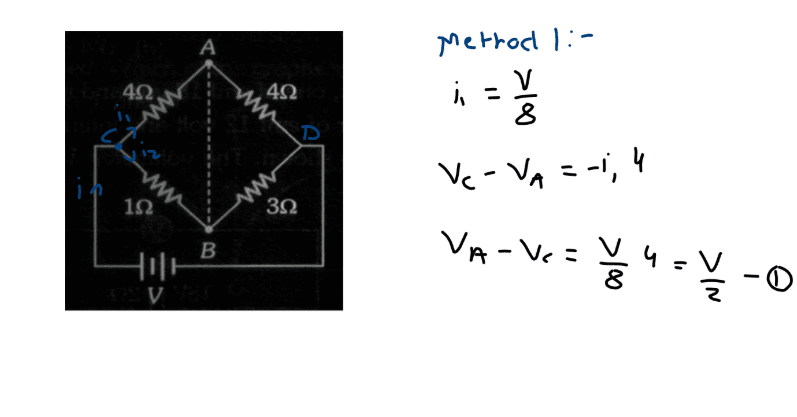

In the circuit shown, if a conducting wire is connected between points A and B, the current in this wire will [2006]

Options :

a)Be zero
b)Flow from B to A
c)Flow from A to B
d)Flow in the direction which will be decided by the value is V

Answer :

c)Flow from A to B

Answer Steps :

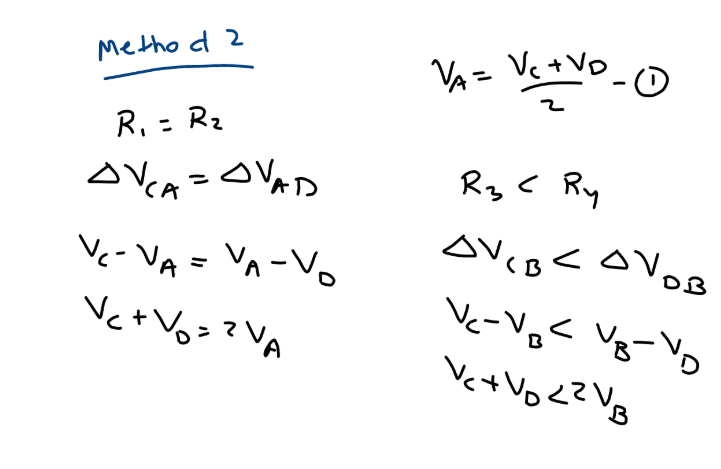

Step:-1

Step:-2

Step:-3

Step:-4

Video Tutorial
