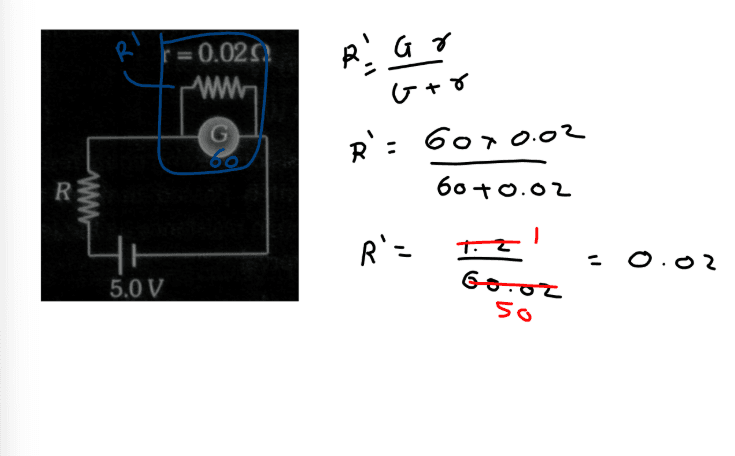

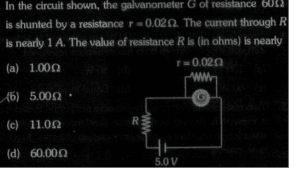

In the circuit shown, the galvanometer G of resistance 602 is shunted by a resistance r = 0.022. The current through R is nearly 1 A. The value of resistance R is (in ohms) is nearly

Question:

Options :

a)1.00Ω
b)5.00Ω
c)11.0Ω
d)60.00Ω

Answer :

b)5.00Ω

Answer Steps :

Step:-1

Step:-2

Video Tutorial

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

A 1 µF condenser is charged to 50 V. The charging battery is then disconnected and a 10 mH coil is connected across the capacitor so that LC oscillations occur. What is the maximum current in the coil ? Assume that the circuit contains no resistance. The capacity of a pure capacitor is 1 F. In d.c. circuits, its effective resistance will be

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by
