Question:

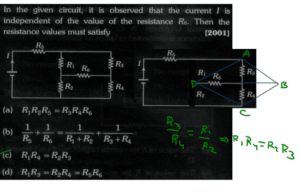

In the given circuit, it is observed that the current I is independent of the value of the resistance R6. Then the resistance values must satisfy [2001]

11c

Options :

a)R1R2R5=R3R4R6
b)1/R5 + 1/R6 =1/R1+R2 + 1/R3+R4
c)R1R4=R2R3
d)R1R3=R2R4=R5R6

Answer :

c)R1R4=R2R3

Answer Steps :

Video Tutorial
