Question:

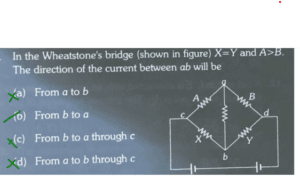

In the Wheatstone’s bridge (shown in figure) X=Y and A> B. The direction of the current between ab will be

72 que

Options :

a)From a to b
b)From b to a
c)From b to a through c
d)From a to b through c

Answer :

b)From b to a

Answer Steps :

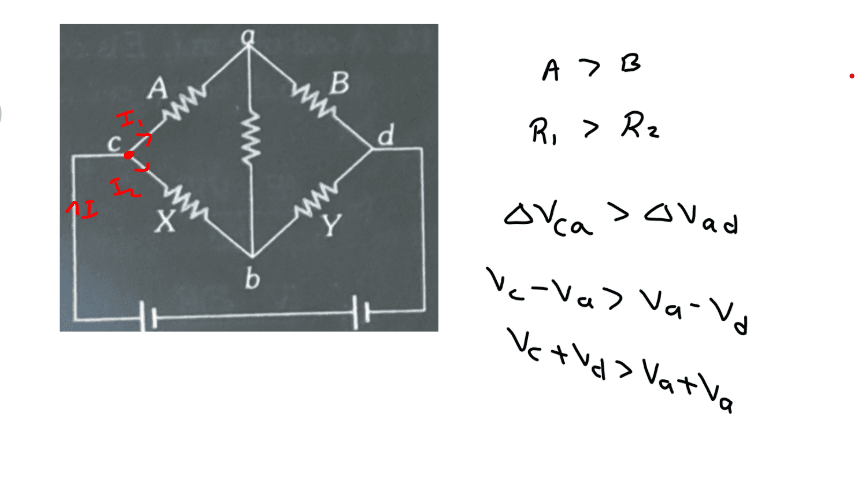

Step:-1

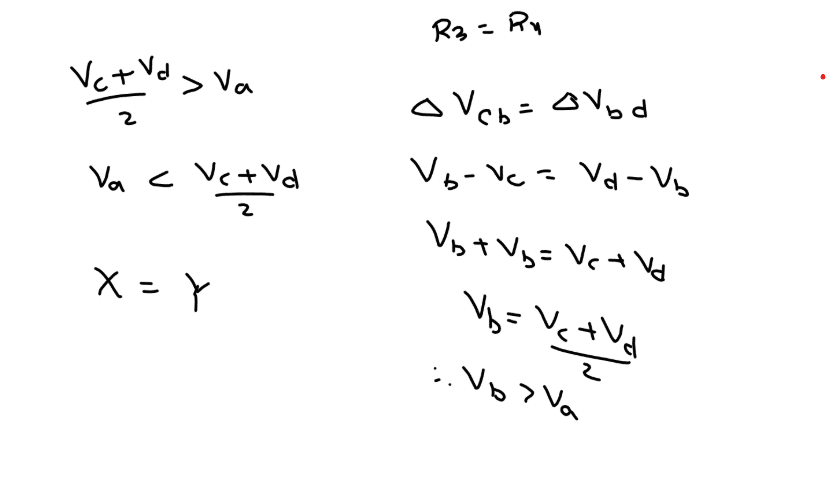

Step:-2

Step;-3

Video Tutorial
