Question:

In Wheatstone’s bridge P = 9 ohm, Q=11ohm, R = 4 ohm and S = 6 ohm. How much resistance must be put in parallel to the resistance S to balance the bridge

Options :

a) 24ohm
b)44/9 ohm
c)26.4ohm
18.7ohm

Answer :

c)26.4ohm

Answer Steps :

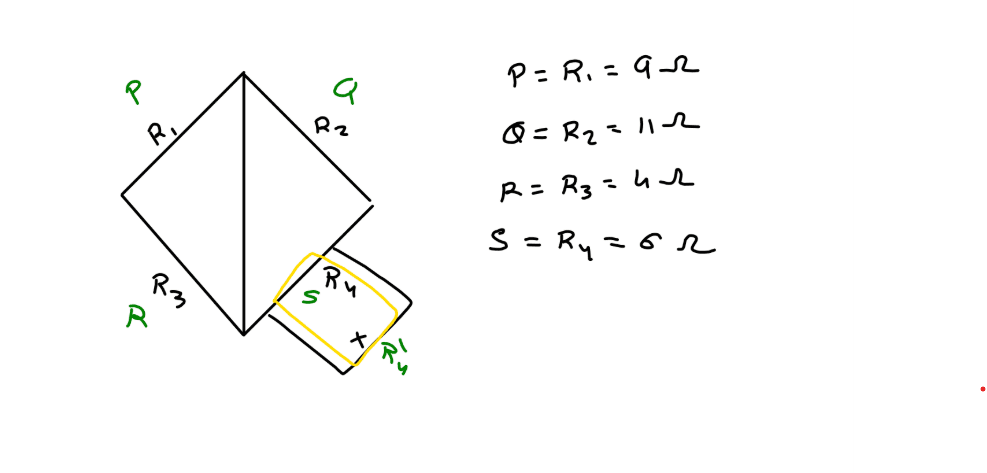

Step:-1

Step:-2

Video Tutorial
