Question:

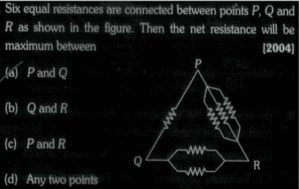

Six equal resistances are connected between points P, Q and R as shown in the figure. Then the net resistance will be maximum between [2004]

10a

Options :

a)P and Q
b)Q and R
c) P and R
d)Any two points

Answer :

a)P and Q

Answer Steps :

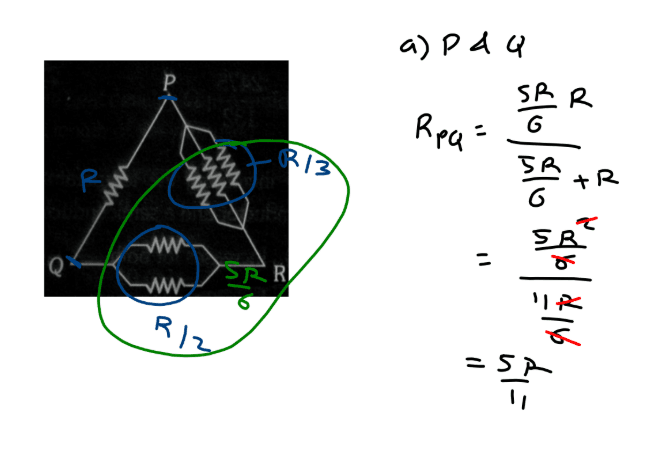

Step:-1

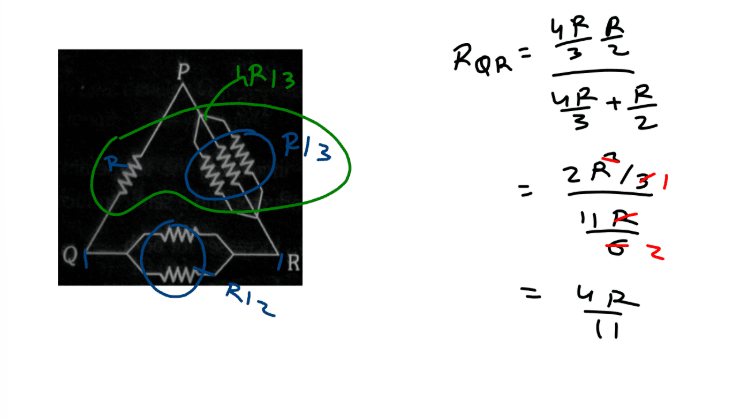

Step:-2

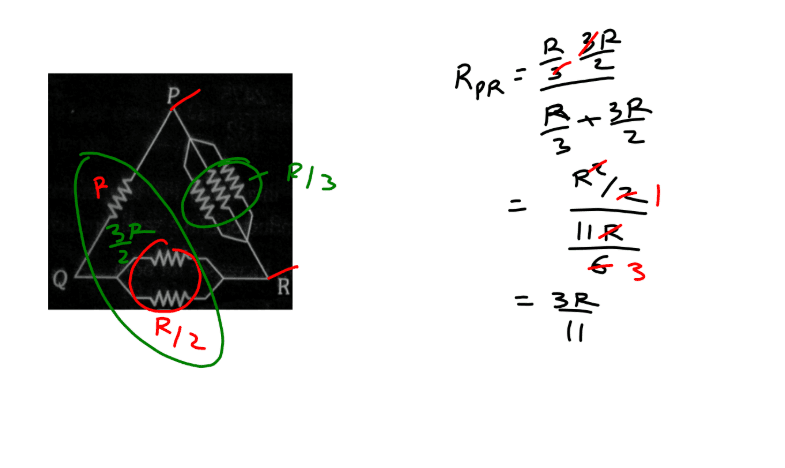

Step:-3
