Six moles of an ideal gas performs a cycle shown in figure. If the temperature are TA = 600 K, TB = 800 K, Tc = 2200 K and TD = 1200 K, the work done per cycle is - VgyanHub

Question:

Six moles of an ideal gas performs a cycle shown in figure. If the temperature are T_A = 600 K, T_B= 800 K, T_c = 2200 K and T_D = 1200 K, the work done per cycle is

Options :

(a) 20 KJ
(b) 30 KJ
(c) 40 KJ
(d) 60 KJ

Answer :

(c) 40 KJ

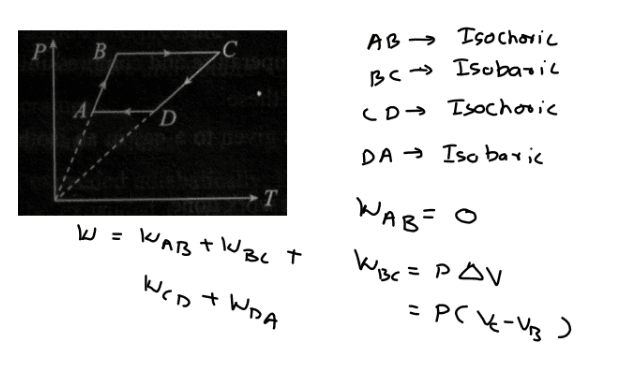

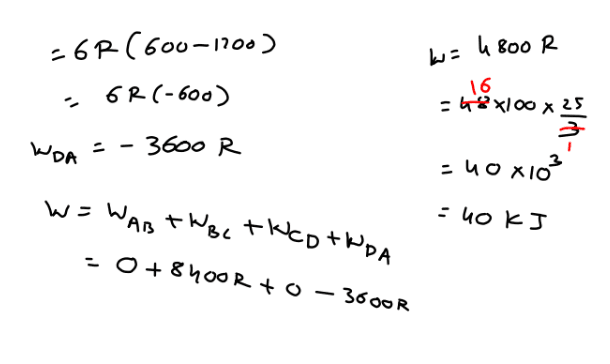

Answer Steps :

step 1

step 2

step 3

Video Tutorial
