Question:

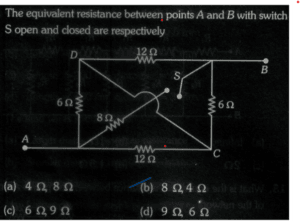

The equivalent resistance between points A and B with switch S open and closed are respectively

40 new que

Options :

α) 4 Ω, 8 Ω
b) 8 Ω,4 Ω
c) 6 Ω,9 Ω
d)9 Ω,6 Ω

Answer :

b) 8 Ω,4 Ω

Answer Steps :

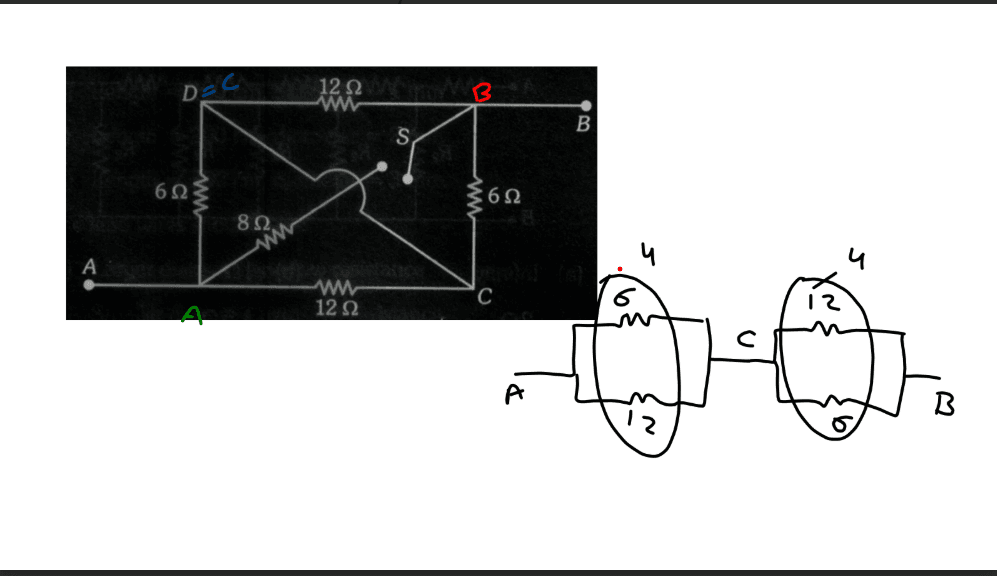

Step:-1

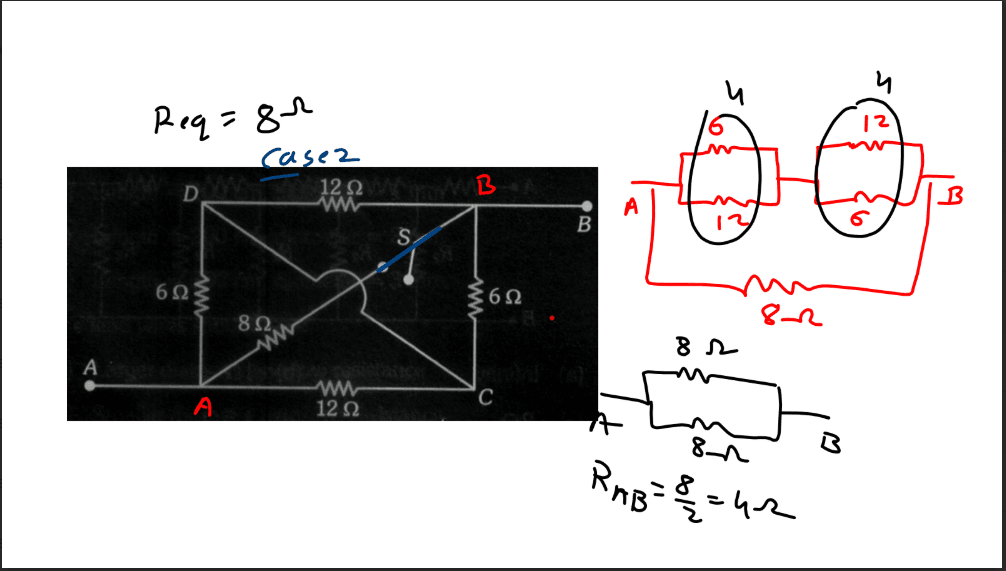

Step:-2

Video Tutorial
