The figure here shows a portion of a circuit. What are the magnitude and direction of the current i in the lower right-handwire - VgyanHub

Question:

The figure here shows a portion of a circuit. What are the magnitude and direction of the current i in the lower right-handwire.

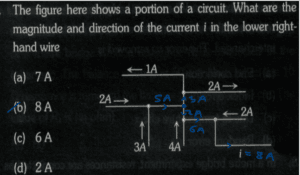

49 que

Options :

a)7A
b)8A
c)6A
d)2A

Answer :

b)8A

Answer Steps :

Video Tutorial
