The force between the plates of a parallel plate capacitor of capacitance 'C' and distance of separation of the plates 'd' with a potential difference 'V' between the plates is

Question:

The force between the plates of a parallel plate capacitor of capacitance ‘C’ and distance of separation of the plates ‘d’ with a potential difference ‘V’ between the plates is

Options :

(a) C^2 V^2/d^2
(b) CV^2/2d
(c) V^2d/C
(d) C^2 V^2/2d^2

Answer :

(b) CV²/2d

Answer Steps :

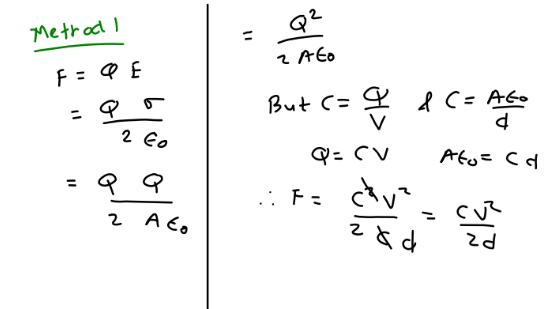

step 1

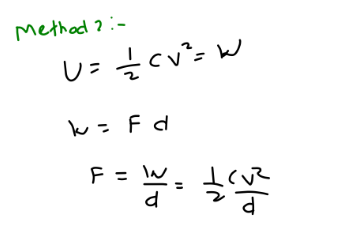

step 2
