Question:

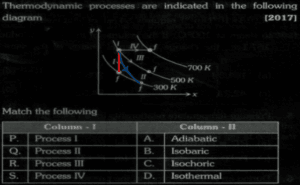

Thermodynamic processes are indicated in the following diagram

Screenshot 2024-12-23 143352

Options :

(a) P→A, Q→C, R→D, S→B
(b) P→C, Q→A, R→D, S→B
(c) P→C, Q→D, R→B, S→A
(d) P→D, Q→B, R→A, S→C

Answer :

(b) P→C, Q→A, R→D, S→B
