Two batteries with e.m.f. of 12V and 13V are connected in parallel across a load resistor of 10 ohm. The internal resistance of the two batteries are 12 and 20 respectively. The voltage across the load lies between [2018]

Question:

Options :

a)11.4V and 11.5 V
b)11.7V and 11.8 V
c)11.6V and 11.7 V
d)11.5V and 11.6 V

Answer :

d)11.5V and 11.6 V

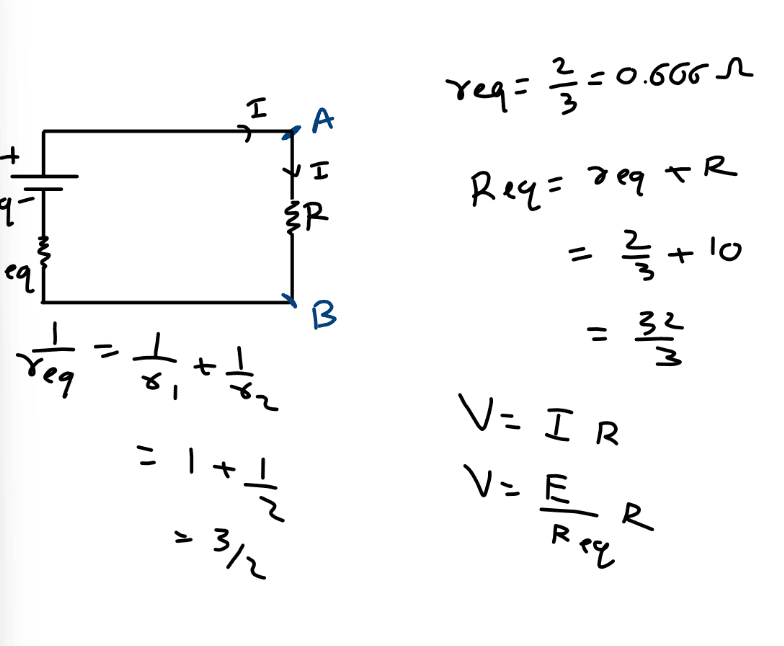

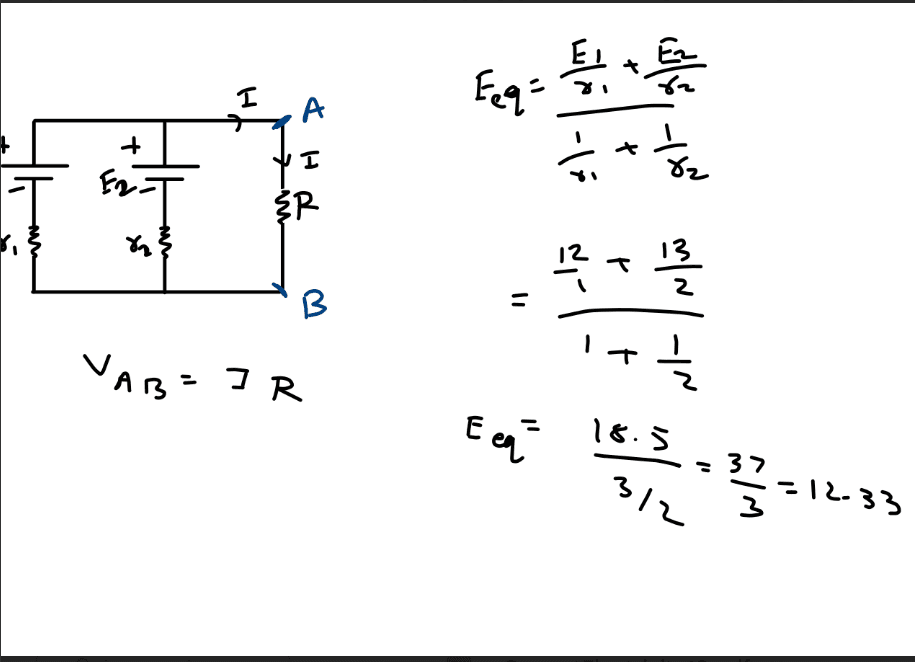

Answer Steps :

Step:-1

Step:-2

Step:-3

Step;-4

Step:-5

Video Tutorial

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

A 1 µF condenser is charged to 50 V. The charging battery is then disconnected and a 10 mH coil is connected across the capacitor so that LC oscillations occur. What is the maximum current in the coil ? Assume that the circuit contains no resistance. The capacity of a pure capacitor is 1 F. In d.c. circuits, its effective resistance will be

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by
