Two condensers C₁ and C₂ in circuit are joined as shown. The potential of point A is V₁ and that of B is V₂. The potential of point D will be

Options :

(a) 1/2(V1+V2)
(b) C1V2+C2V1/C1+C2
(c) C1V1+C2V2/C1+C2
(d) C2V1-C1V2/C1+C2

Answer :

(c) C₁V₁+C₂V₂/C₁+C₂

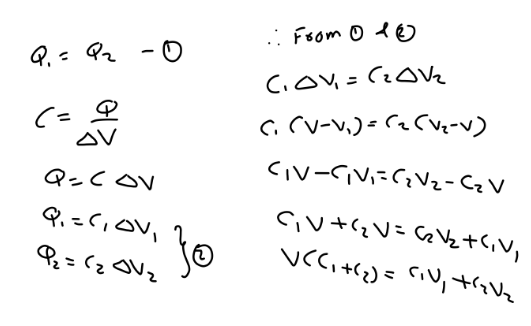

Answer Steps :

step 1

step 2
