Two condensers of capacities 'C' and '2C' are connected in parallel and then in series with third condenser of capacity '3C'. The combination is charged to 'V' volt. The charge on the condenser of capacity 'C' is

Question:

Two condensers of capacities ‘C’ and ‘2C’ are connected in parallel and then in series with third condenser of capacity ‘3C’. The combination is charged to ‘V’ volt. The charge on the condenser of capacity ‘C’ is

Options :

(a) CV/2
(b) CV/3
(c) CV/6
(d) CV

Answer :

(a) CV/2

Answer Steps :

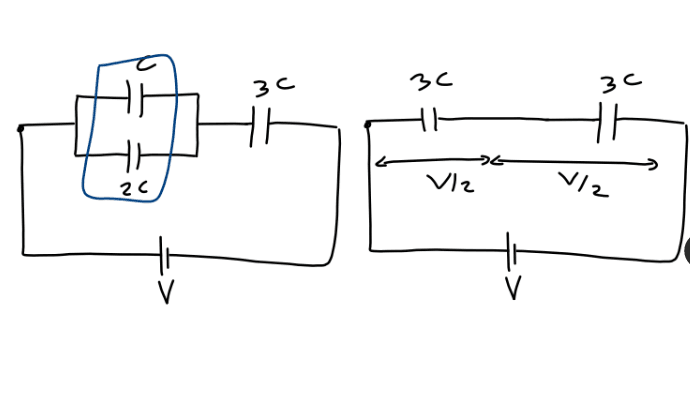

step 1

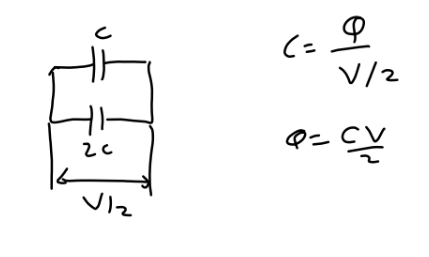

step 2
