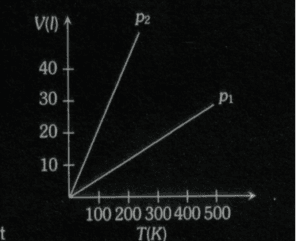

Volume versus temperature graphs for a given mass of an ideal gas is shown in figure. At two different values of constant pressure. What can be inferred about relation between P1 and p2

Question:

Options :

(a) PI > P2
(b) P1 = P2
(c) P1 < P2
(d) Data is insufficient

Answer :

(a) PI > P2

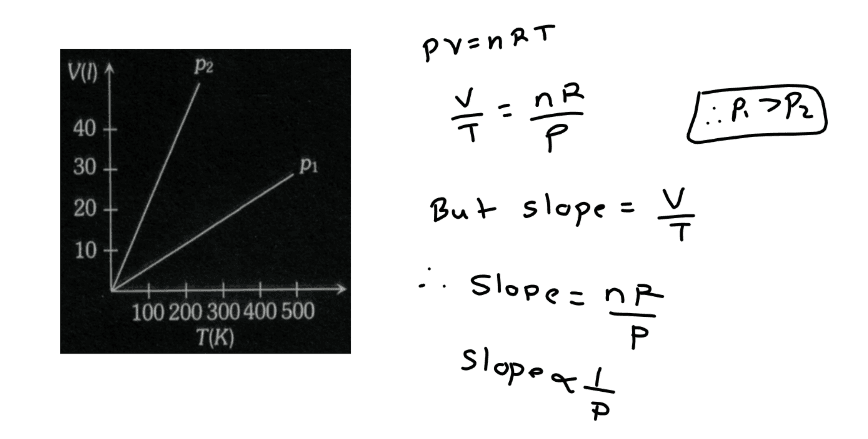

Answer Steps :

Video Tutorial

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

A 1 µF condenser is charged to 50 V. The charging battery is then disconnected and a 10 mH coil is connected across the capacitor so that LC oscillations occur. What is the maximum current in the coil ? Assume that the circuit contains no resistance. The capacity of a pure capacitor is 1 F. In d.c. circuits, its effective resistance will be

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by

Online Support

Related Questions

An alternating voltage source is connected in series with a resistance R and an inductance L. If the potential drop across the resistance is 200 V and across the inductance is 150 V, then the applied voltage is:

In an a. c. circuit the instantaneous current and e.m.f. are represented as: I = I0 sin(ωt – π/6) and E = E0 sin(ωt + π /3) respectively. The voltage leads the current by
